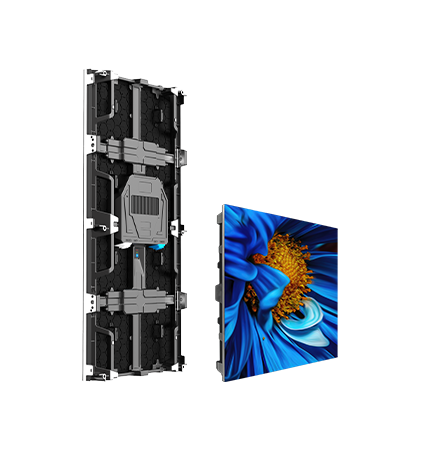

Mwall Series

More choice & More applications

Pixel pitch: 1.9/2.6/2.9/3.9/4.8mm

Cabinet size: 500*500*65mm / 500*1000*65mm

Operating environment: Indoor

Request A Solution

Higher Flatness and Accuracy

Adopting die-casting aluminum cabinet, it is lighter and has higher precision.

Module positioning with magnetic design and the PCB fits the cabinet frame, reduces tolerance, and improves the flatness.

Excellent Viewing Experience

≥3840Hz high refresh rate

High contrast ratio

160° wide viewing angle, comfortable for close watching

Wider Application Coverage, Cost Saving

Customized 45° angle cabinet can realize seamless corner splicing.

Replace the module, it can upgrade the resolution.

Support ground stacking, wall mount, and embedded install.

Easy to Install and Maintain

Smart monitoring, working temperature display and self-testing

Adopted fast lock structure(optional), faster to install

Front access, easy to maintenance

Parameters

DOWNLOAD

Pixel Pitch (mm)	1.9	1.9	2.6	2.6	2.9	3.9	4.8
Operating Environment	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor
Module Size (mm)	250*250	250*250	250*250	250*250	250*250	250*250	250*250
Cabinet Size (mm)	50050065/ 500100065	50050065/ 500100065	50050065/ 500100065	50050065/ 500100065	50050065/ 500100065	50050065/ 500100065	50050065/ 500100065
Cabinet Resolution (W×H)	256256/256512	256256/256512	192192/192384	192192/192384	168168/168336	128128/128256	104104/104208
IP Grade	IP20	IP20	IP20	IP20	IP20	IP20	IP20
Weight (kg/cabinet)	5.6/11.5	5.6/11.5	5.6/11.5	5.6/11.5	5.6/11.5	5.6/11.5	5.6/11.5
White Balance Brightness (nit)	800-1000	4000-4500	800-1000	4000-4500	800-1000	800-1000	800-1000
Horizontal / Vertical Viewing Angle	160/155	160/160	160/145	160/160	160/150	160/150	160/145
Power Consumption(W/㎡)	460±15%/155±15%	550±15%/185±15%	450±15%/150±15%	550±15%/185±15%	500±15%/170±15%	520±15%/175±15%	500±15%/170±15%
Refresh Rate(Hz)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Control System	Nova	Nova	Nova	Nova	Nova	Nova	Nova
Certification	TUV CE, FCC, ETL	TUV CE, FCC, ETL	TUV CE, FCC, ETL	TUV CE, FCC, ETL	TUV CE, FCC, ETL	TUV CE, FCC, ETL	TUV CE, FCC, ETL
