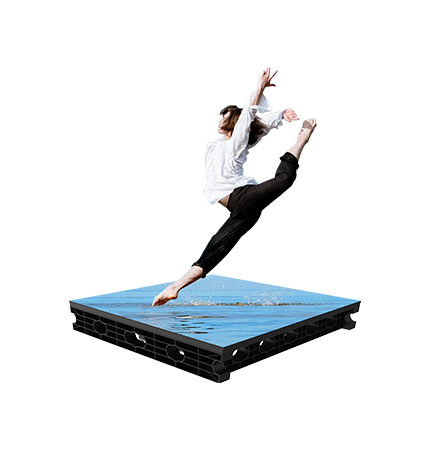

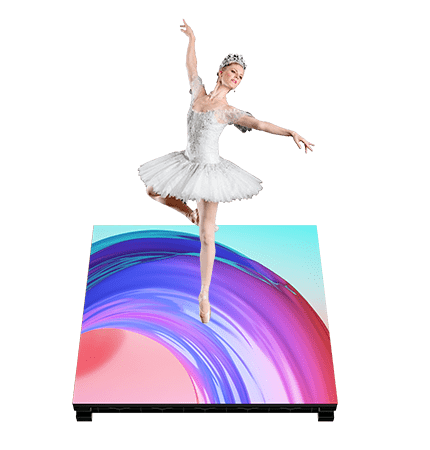

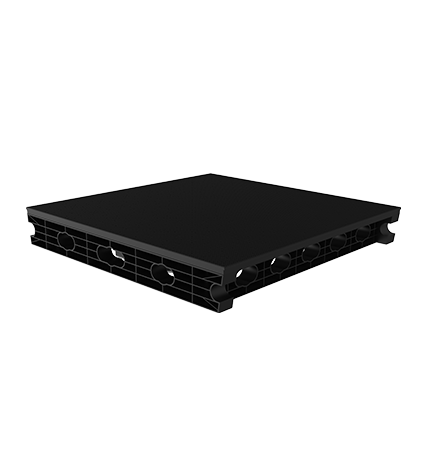

MG Dance Floor

Strong load- bearing capacity to support wonderful stage

Pixel pitch: 3.9/4.8/5.9mm

Cabinet size: 500*500*73mm

Operating environment: Indoor & Outdoor

Request A Solution

Strong Load-bearing Capacity

Matched with the exclusive dance floor mask of Magic Stage series, it can be used as dance floor with maximum bearing capacity of 4.6 tons. It is three times than the metal cabinets.

Full View Design Outstanding Display

Adopting full view mask when using for dance floor, no color bias, no color block , and no image distortion. the audience coverage is much wider.

Interactive dance floor

The application of interactive dance floor display can be realized through the self-contained induction system (optional).

PARAMETERS

DOWNLOAD

Pixel Pitch (mm)	3.9	3.9	4.8	4.8	5.9	5.9
Operating Environment	Indoor&Outdoor	Indoor&Outdoor	Indoor&Outdoor	Indoor&Outdoor	Indoor&Outdoor	Indoor&Outdoor
Module Size (mm)	250*250	250*250	250*250	250*250	250*250	250*250
Cabinet Size (mm)	50050073	50050073	50050073	50050073	50050073	50050073
Cabinet Resolution (W×H)	128*128	128*128	104*104	104*104	96*96	96*96
IP Grade	Front IP65 Rear IP54	Front IP65 Rear IP54	Front IP65 Rear IP54	Front IP65 Rear IP54	Front IP65 Rear IP54	Front IP65 Rear IP54
Weight (kg/cabinet)	6	5.9	5.8	5.8	5.8	6.2
White Balance Brightness (nit)	5500-6000	4000-4200	5500-6000	4000-4200	5500-6000	3000-3500
Horizontal / Vertical Viewing Angle	165/165	160/160	160/160	160/160	140/120	140/120
Power Consumption(W/㎡)	750±15%/280±15%	550±15%/180±15%	650±15%/210±15%	550±15%/210±15%	650±15%/210±15%	720±15%/240±15%
Refresh Rate(Hz)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Control System	Nova	Nova	Nova	Nova	Nova	Nova
Certification	CE, FCC, ETL	CE, FCC, ETL	CE, FCC, ETL	CE, FCC, ETL	CE, FCC, ETL	CE, FCC, ETL
