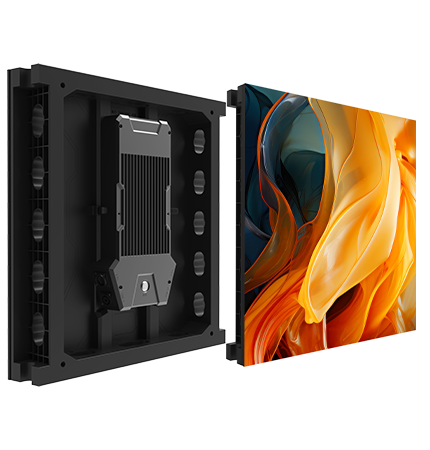

MG9 Series

Upgraded version of flagship rental LED screen

Pixel pitch: 2.9/3.9/5.9mm

Cabinet size: 500*500*71mm

Operating environment: Indoor & Outdoor

Request A Solution
Upgraded Version of Flagship Rental Series!
Unique TET Technology Delivers 80-100N LED’s Thrust

TET (Thrust Enhancement Tech) is the development of a stronger bond of the LEDs to the circuit board, thus providing a better connection that is more resistant to physical damage with higher LED thrust.

Anti-collision Capability Increased by 2.3 times

Protective corners on all four sides effectively safeguard LEDs (*P2.9 only).

Delicate and Detailed Display Effect

Featuring 7680Hz refresh rate, high gray IC, and 12000:1 contrast ratio, providing vibrant and vivid visuals.

Dance Floor Screen

· With 2nd generation MG dance floor frame, it can be floor screen, which adds to the effect of the stage for an immersive viewing experience.



· The anti-fatigue performance is fivefold, with a maximum load-bearing capacity of 4.6 tons, fully meeting the requirement of large-scale events application.



· The patented dance floor mask enables full ranging viewing angle for 360° shooting. It can used as interactive dance floor (optional) for a more engaging experience.

Indoor & Outdoor - Works Everywhere

· Screen brightness ranges from 800 nits to 5500 nits, which can be adjusted to fit different lighting conditions as needed.



· It features a high protection rate of IP65 and excellent heat dissipation, making it suitable for both indoor and outdoor environments.

Better Heat Dissipation Design

· Dual heat dissipation: aluminum backplane + thermal balance system(optional) to distribute the heat of LEDs and IC evenly.



· Dual Heat Dissipation Modes: bigger aluminum radiation fin + thermal conductivity balancing system for cooling.

Easier Maintenance for Enhanced Efficiency

· Power box updated with clear modular design for convenient and efficient maintenance.



· With the new curved connectors, the cabinets can be replaced directly from the entire screen.

Creative Shapes

· With the MG connector, the MG9 cabinet enables customized angles between -15 and +15 degrees (P2.9±5°), allowing for curved screen, S screen and ring screen.



· Combined with MG creative-extended series, achieving various shapes such as letters, numbers, rounds, etc.

Application Scenarios

·Covers 100% rental applications for both indoor & outdoor settings, such as: “LED ribbon”, sphere, ceiling screen, stadium screen, dance floor, etc with corresponding frames to realize “one screen for all” concept.



· It can be installed at concerts, exhibitions, awarding ceremony, opening ceremony,etc.

PARAMETERS

DOWNLOAD
Pixel Pitch(mm) 2.9 3.9 3.9 5.9
Operating Environment  Indoor & Outdoor Indoor & Outdoor Indoor & Outdoor Indoor & Outdoor
Module Size(mm)  250*250 250*250 250*250 250*250
Cabinet Size(mm) 500*500*71 500*500*71 500*500*71 500*500*71
Cabinet Resolution(W×H)  168*168 128*128 128*128 84*84
IP Grade Front IP65 Rear IP54 Front IP65 Rear IP54 Front IP65 Rear IP54 Front IP65 Rear IP54
Weight(kg/Cabinet) 6.3 6 6 5.9
White Balance Brightness(nit)  3500-3800 4000-4500 4000-4200 5000-5500 3200-3500 4000-4200 3000-3500 4000-4500
Horizontal/Vertical Viewing Angle( °)  160/160 160/160 160/160 160/120
Power Consumption(W/㎡) 700±15%/235±15% 700±15%/235±15% 550±15%/180±15% 700±15%/235±15%
Refresh Rate(Hz) ≥3840 ≥3840 ≥3840 ≥3840
 Control System Nova Nova Nova Nova
Product Certification CE,FCC,ETL CE,FCC,ETL CE,FCC,ETL CE,FCC,ETL
