Simplify Workflow, Amplify Efficiency
Pixel pitch (mm): 0.78/0.93/1.25/1.56/1.87mm
Size option: 138/165 inch
Operating environment: Indoor
Simplify Workflow, Amplify Efficiency
Pixel pitch (mm): 0.78/0.93/1.25/1.56/1.87mm
Size option: 138/165 inch
Operating environment: Indoor

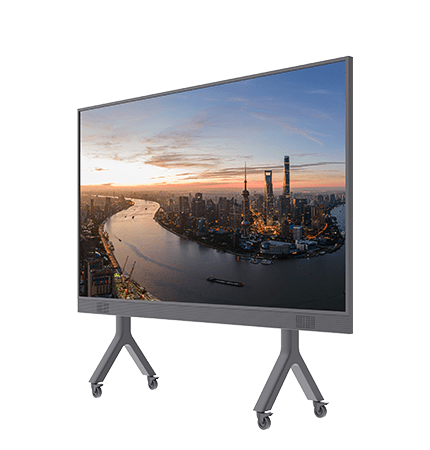

Mnano II + all-in-one design= 4K display + super efficiency for conference.
Optimal aspect ratio at 16:9 and available at 138" and 165" sizes.
Utilizing COB flip chip and nano-optical composite coating, the screen preserves black consistency and boasts a 10,000:1 contrast ratio, plus a matte, anti-glare design for premium viewing.
Portable stand and front maintenance for easy setup and low-cost care.
· Dual support for WiFi-6 and hotspots via a virtual router for fast and stable wireless access.
· Share your content with one click. Compatible with Windows, Mac OS, iOS, and Android systems.
Remote control offers you more convenience like using a TV.
More interactivity with real-time writing on screen and automatic saving for later checking.
√ Android 11 with third-party app support.
√ OPS interface for dual-systems.
√ HD video playback, local and online.
√ Bluetooth 5.0 for conference peripherals.
√ Remote video conference.
Corporate meeting rooms, educational training, medical facilities, and government agencies.
| Overall size (inch) | 138" | ||||
| Model Number | AIO138-MS07 | AIO138-MS09 | AIO138-MS12 | AIO138-MS15 | AIO138-MS18 |
| Pixel pitch (mm) | 0.78 | 0.93 | 1.25 | 1.56 | 1.87 |
| Display resolution (dot) | 3840x2160 | 3200x1800 | 2400x1350 | 1920x1080 | 1600x900 |
| Visible area (㎡) | 5.0625 | 5.0625 | 5.0625 | 5.0625 | 5.0625 |
| Cabinet material | Die cast aluminum | Die cast aluminum | Die cast aluminum | Die cast aluminum | Die cast aluminum |
| Maintenance method | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
| IP rating | IP54 (Surface can be cleaned with water) | ||||
| Installation method | Mobile stand (Wall mounting, hanging for option) | ||||
| Control mode | Remote control | Remote control | Remote control | Remote control | Remote control |
| Encapsulation | COB | COB | COB | COB | COB |
| Viewing angle | 160°（H）/160°（V） | 160°（H）/160°（V） | 160°（H）/160°（V） | 160°（H）/160°（V） | 160°（H）/160°（V） |
| Circuit scheme | Common cathode | Common cathode | Common anode | Common anode | Common anode |
| Brightness (nit) | 600 | 600 | 600 | 600 | 550 |
| Single pixel brightness/color clibration | Support | Support | Support | Support | Support |
| Refresh rate (Hz) | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 |
| Frame rate (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Gray scale (bit) | 14 | 14 | 14 | 14 | 14 |
| Operating system | standard Andriod 11.0 | standard Andriod 11.0 | standard Andriod 11.0 | standard Andriod 11.0 | standard Andriod 11.0 |
| CPU | Quad-core processor | Quad-core processor | Quad-core processor | Quad-core processor | Quad-core processor |
| Interface type | Inputs: HDMI2.0*4/USB3.0/2.0*2 | Inputs: HDMI1.3/USB2.0*2 | |||
| Interface type | Outputs: RJ45*1/AUDIO*1/SPDIF*1/HDMI2.0*1 | Outputs: RJ45*1/AUDIO*1/SPDIF*1/HDMI1.3*1 | |||
| WiFi | Internet + hotspot | Internet + hotspot | Internet + hotspot | Internet + hotspot | Internet + hotspot |
| Working voltage | AC100V~240V, 50/60Hz | ||||
| Overall size (inch) | 165" | |||
| Model Number | AIO165-MS09 | AIO165-MS12 | AIO165-MS15 | AIO165-MS18 |
| Pixel pitch (mm) | 0.93 | 1.25 | 1.56 | 1.87 |
| Display resolution (dot) | 3840*2160 | 2880*1620 | 2304*1296 | 1920x1080 |
| Visible area (㎡) | 7.29 | 7.29 | 7.29 | 7.29 |
| Cabinet material | Die cast aluminum | Die cast aluminum | Die cast aluminum | Die cast aluminum |
| Maintenance method | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
| IP rating | IP54 (Surface can be cleaned with water) | |||
| Installation method | Mobile stand (Wall mounting, hanging for option) | |||
| Control mode | Remote control | Remote control | Remote control | Remote control |
| Encapsulation | COB | COB | COB | COB |
| Viewing angle | 160°（H）/160°（V） | 160°（H）/160°（V） | 160°（H）/160°（V） | 160°（H）/160°（V） |
| Circuit scheme | Common cathode | Common anode | Common anode | Common anode |
| Brightness (nit) | 600 | 600 | 600 | 550 |
| Single pixel brightness/color clibration | Support | Support | Support | Support |
| Refresh rate (Hz) | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 |
| Frame rate (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Gray scale (bit) | 14 | 14 | 14 | 14 |
| Operating system | standard Andriod 11.0 | standard Andriod 11.0 | standard Andriod 11.0 | standard Andriod 11.0 |
| CPU | Quad-core processor | Quad-core processor | Quad-core processor | Quad-core processor |
| Interface type | Inputs: HDMI2.0*4/USB3.0/2.0*2 | Inputs: HDMI1.3*1/USB2.0*2 | ||
| Interface type | Outputs: RJ45*1/AUDIO*1/SPDIF*1/HDMI2.0*1 | Outputs: RJ45*1/AUDIO*1/SPDIF*1/HDMI1.3*1 | ||
| WiFi | Internet + hotspot | Internet + hotspot | Internet + hotspot | Internet + hotspot |
| Working voltage | AC100V~240V, 50/60Hz | |||
