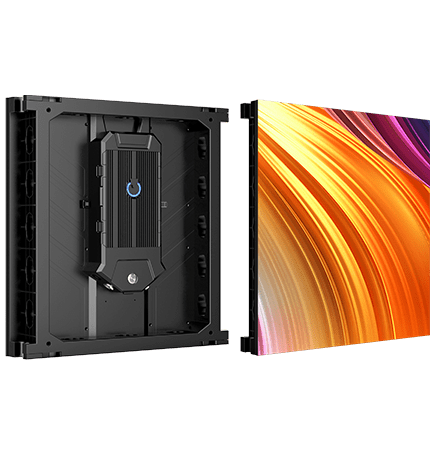

MG6S Series

Wise choice for indoor rental

Pixel Pitch (mm): 1.953/2.6/2.84/3.9/4.8/5.2mm

Cabinet Size: 500*500*73mm

Operating Environment: Indoor

Request A Solution
Wise Choice for Indoor Rental

Wide application: Indoor concerts, awards ceremony, conference, indoor sports events, sky curtain, etc.

Creative Shapes

The unique design of cabinet structure and connector to realize inner and outer curve, S shape, etc.

​Creative Shapes

Combine with MG11/ MG12/MG13/MG14/MG15, it can realize circles, letters, numbers, Chinese characters, etc.

Combined with MG11/MG12/MG13/MG14/MG15>>

Multi-hole Design

The Anti-collision Ability Increased by 100%

Uniform Heat Dissipation

Adding the heat conduction balance system to release the heat of each working IC and LEDs effectively and evenly, which can reduce 3-4° for the IC and LEDs at most.

Light and Thin Cabinet

Adopting Polymer nanotechnology material which is easy to carry and installed, is more suitable for rental use. Used as sky curtain, easier and safer installation.

Easy and Fast Maintenance

Modular design, cable-less design.
• Front and rear maintenance.
• The cabinet can be replaced out of the whole screen.

Real Visual Reappearance

Selecting full black LEDs and high gray high refresh IC, matching with superior control system, and adopting HDR technology, the screen could reach 18 bits gray scale.

Safe and Reliable

Double Backup Correction Data:Support module flash management, intelligent module management, and double backup correction data, which offers one more safeguard in debugging and ensures high stability, safety and reliability of the system.

Application Scenarios

Indoor concerts, awards ceremonies, celebrations, indoor sports events, conferences, etc.

Parameters

DOWNLOAD
Contact us for more parameters
Product Name YMG6S Pro-P02GNFS24 YMG6S Pro-P02INFD22 YMG6S-P03JNFD16 YMG6S-P04INFD13 YMG6S-P05INFD12
Pixel Pitch (mm) 2.6 2.84 3.9 4.8 5.2
Operating Environment Indoor Indoor Indoor Indoor Indoor
Module Size (mm) 250*250 250*250 250*250 250*250 250*250
Cabinet Size (mm) 500*500*73 500*500*73 500*500*73 500*500*73 500*500*73
Cabinet Resolution (W×H) 192*192 176*176 128*128 104*104 96*96
IP Grade IP50 IP50 IP50 IP50 IP50
Weight (kg/cabinet) 6.7 6.7 5.8 5.6 5.5
White Balance Brightness (nit) 800-1000 800-1000 800-1000 800-1000 800-1000
Horizontal / Vertical Viewing Angle 160/160 160/120 160/120 160/120 160/120
Power Consumption(W/㎡) 450±15%/150±15% 450±15%/140±15% 420±15%/140±15% 420±15%/140±15% 420±15%/140±15%
Refresh Rate(Hz) ≥1920(1920,2880,3840...) ≥1920(1920,2880,3840...) ≥1920(1920,2880,3840...) ≥1920(1920,2880,3840...) ≥1920(1920,2880,3840...)
Control System Nova Nova Nova Nova Nova
Certification CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL
