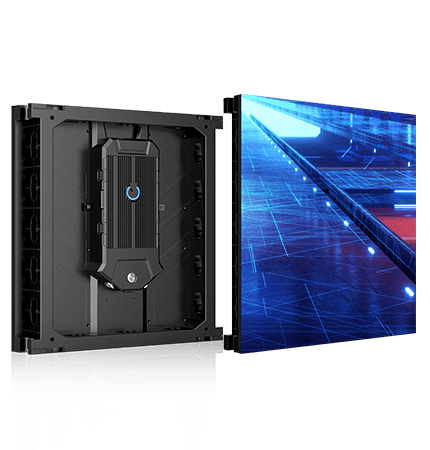

High resolution indoor LED display for high-end rental
Pixel pitch: 1.9/1.953mm
Cabinet size: 500*500*73mm/500*500*75mm
Operating environment: Indoor
High resolution indoor LED display for high-end rental
Pixel pitch: 1.9/1.953mm
Cabinet size: 500*500*73mm/500*500*75mm
Operating environment: Indoor
For indoor application of high-end conference rental — meeting room, hotel, etc.
The unique design of cabinet structure and connector to realize inner and outer curve, S shape, etc.
Adopting 4-in-1 and size 30X30 LED, single LED adhesion can up to 60-70N. Strengthen LED adhesion, improving LED anti-collision ability; corner protection solves the collision problem for high resolution rental product. It is the most reliable and stable SMD solution for high resolution rental products.
Adopting common cathode technology, the average power consumption 28W for a single cabinet.
Excellent heat dissipation design can release the heat of each working IC and LEDs evenly.
This can make the heat dissipation quickly, the image is stable and smooth, and prolong the lifespan.
Using a custom 4-in-1 LED with a high-quality control system and HDR technology, it can achieve up to 18-bit + grayscale output to give you fantastic visuals.
Equipped with professional maintenance tools, it supports rental on-site maintenance.
Cable-less design of cabinet inner
The back cover is fastened by buckle, it can be disassembled quickly.
Flexible and easy maintenance makes efficient cabinet usage.
Supporting the double backup correction data and intelligent module management, which offers one more safeguard in debugging and ensures high stability, safety and reliability of the system.
High-end conference rental — meeting room, hotel, etc.
| Pixel Pitch (mm) | 1.9（Common anode) | 1.9(Common anode) | 1.9(Common cathode) | 1.953(Common cathode)-Customized Color Gamut |
| Operating Environment | Indoor | Indoor | Indoor | Indoor |
| Module Size (mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*75 |
| Cabinet Resolution (W×H) | 256*256 | 256*256 | 256*256 | 256*256 |
| IP Grade | IP50 | IP50 | IP50 | IP50 |
| Weight (kg/cabinet) | 6.2 | 6.4 | 6.2 | 6 |
| White Balance Brightness (nit) | 800-1000 | 1200-1500 | 500-700 | 800-1000 |
| Horizontal / Vertical Viewing Angle | 160/120 | 160/120 | 160/120 | 160/120 |
| Power Consumption(W/㎡) | 450±15%/150±15% | 600±15%/200±15% | 400±15%/105±15% | 400±15%/120±15% |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | 7680 |
| Control System | Nova | Nova | Nova | Nova |
| Certification | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL |
