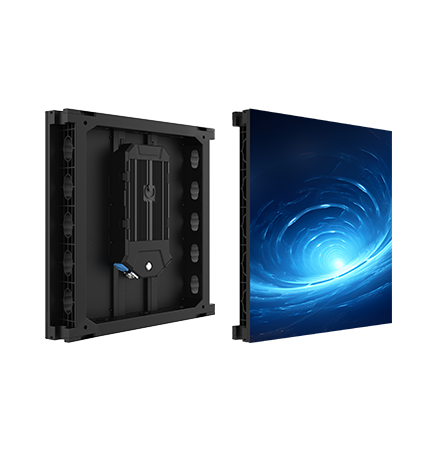

MG10 Series

New Upgrade Indoor Rental Series

Pixel pitch:1.9/2.6/3.9/4.8

Cabinet size: 500*500*73mm

Operating environment: Indoor

Request A Solution

Perfect Vision, Easy Use

Efficient Maintenance

·The power box is removable and features a partition design for quick maintenance.

·An internal pin connection within the cabinet streamlines disassembly for ease of service.

Platform Design

Different modules with different pixel pitches can be used on one frame. It can also be spliced with the MG Cube & MU indoor series.

Seamless Visuals with High Flatness

The cabinet adopts the integrated design, it has greatly improved flatness for the modules and the splicing accuracy between panels, achieving optimal display consistency.

Enhanced Configuration with No Additional Cost

Enjoy a 7680Hz refresh rate, 18-bit grayscale IC, and a 9000:1 contrast ratio for HDR display for an unparalleled visual experience.

Perfect Black Consistency

Significantly addresses the issue like redness and bluish-green color caused by uneven heat dissipation with Thermal Compensation Technology.

Lower Lamp-fall Rate

The exclusive TET tech minimizes LED damage during transport or operation to reduce maintenance costs.

High Reliability for Debugging

·One-click to reset to the standard vision with MX-NCP configuration (optional) to save time while debugging.

·Dual backup support for calibration, offering enhanced security.

Creative Shapes

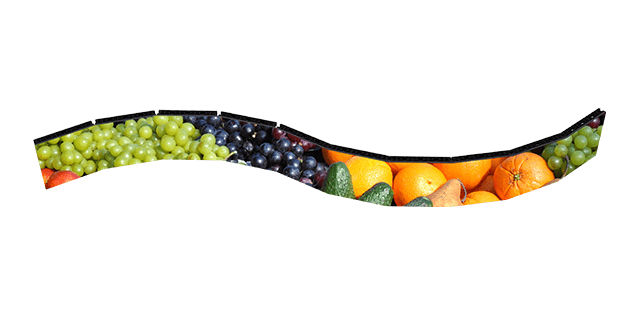

·Curved splicing: Featuring MG Curved connectors, it supports ±10°curves (P1.9 offers ±5°)
·Creative splicing: Combined with the MG Creative-Extended Series can achieve letters, numbers, hearts, etc.
·Dislocation splicing: Vertical, horizontal, and front-back dislocation.

Application Scenarios

Perfect for high-end conference, rewarding ceremony, indoor concerts, TV studio, etc.

PARAMETERS

DOWNLOAD

Pixel Pitch（mm）	1.9	1.9	2.6	2.6	3.9	4.8
Operating Environment	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor
Module Size（mm）	250*250	250*250	250*250	250*250	250*250	250*250
Cabinet Size（mm）	50050073	50050073	50050073	50050073	50050073	50050073
Cabinet Resolution (W×H)	256*256	256*256	192*192	192*192	128*128	104*104
IP Grade	IP50	IP50	IP50	IP50	IP50	IP50
Weight (kg/cabinet)	6.6	6.6	6.6	6.6	6.6	6.6
White Balance Brightness (nit)	800~1000	1200~1500	800-1000	1200-1500	800~1000	800-1000
Horizontal / Vertical Viewing Angle	160/120	160/120	160/120	160/120	160/120	160/120
Power Consumption (W/m²)	450±15%/150±15%	600±15%/200±15%	450±15%/150±15%	650±15%/220±15%	420±15%/140±15%	420±15%/140±15%
Refresh Rate(Hz)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Control System	Nova	Nova	Nova	Nova	Nova	Nova
Certification	CE,FCC,ETL	CE,FCC,ETL	CE,FCC,ETL	CE,FCC,ETL	CE,FCC,ETL	CE,FCC,ETL
