YESchool-Understanding LED Display Brightness: A Key Factor for Optimal Visual Performance

Defining LED Display Brightness

LED display brightness, measured in Nits (candelas per square meter, cd/m²), refers to the luminous intensity emitted per unit area in the display’s normal direction. This parameter, often termed white balance brightness, is defined by the chromaticity coordinates of pure white (x = 0.3127, y = 0.3290), ensuring consistent color accuracy and uniform brightness perception.

Factors Affecting Brightness:

· Quality of LED lamps:

High-quality lamps can effectively slow down the rate of brightness decay, ensuring long-term usage effectiveness.

· Drive Current:

The forward current directly determines the brightness of a single LED. Higher currents result in greater luminous intensity. However, it is essential to balance power consumption and lifespan to maintain optimal performance.

Brightness Levels for Different Applications

Indoor Applications

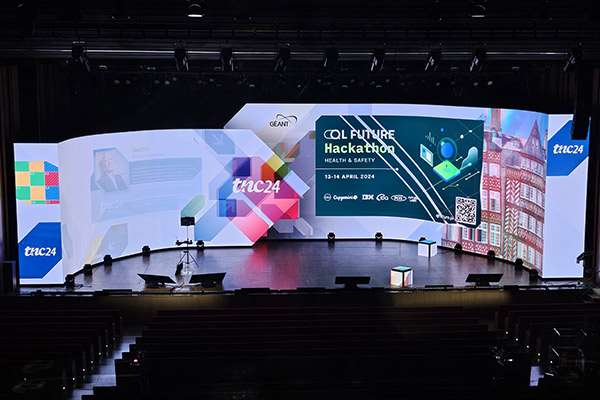

For indoor environments, brightness levels ranging from 600 to 1500 cd/㎡are generally sufficient. Excessive brightness can cause visual discomfort and lead to unnecessary energy expenditure. In applications such as stage performances or exhibitions, brightness should not exceed 1500 cd/㎡ to ensure clear visibility of performers and background elements without overwhelming the viewer.

Outdoor and Semi-Outdoor Applications

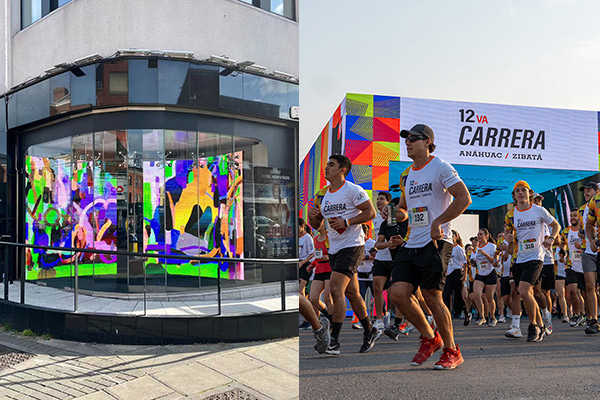

Outdoor LED displays exposed to sunlight require a minimum brightness of 4500 cd/㎡ to maintain visibility. Insufficient brightness in daylight conditions can result in a washed-out appearance, diminishing the effectiveness of advertising, broadcasting, or informational displays. In semi-outdoor settings, such as covered areas or storefront windows, a brightness range of 2000-4000 cd/㎡ provides a balanced solution that accommodates varying light conditions.

Adjustable Brightness

Adjustable brightness is a crucial feature for LED displays, particularly in various applications where the ambient light conditions change, or where different viewing preferences and requirements must be accommodated. Modern LED displays come with adjustable brightness settings, allowing for seamless adaptation to various lighting conditions that optimize the viewer’s experience. For example, our MG9 Series, which offers a brightness range from 800nit to 5500nit, is perfectly suited for both indoor and outdoor applications.

Understanding and optimizing LED display brightness is vital for achieving optimal visual performance and viewer comfort. With the right brightness levels, LED displays can effectively meet the diverse needs of different environments.
